Processing capacity | CNC50C/2500 | CNC50C/3000 |
Max swing diameter | Ф500mm | Ф500mm |
Max processing diameter | Ф350mm | Ф350mm |
Max turning length | 2000mm | 2500mm |
Spindle nose | A2-6 | A2-6 |
Sindle hole | Ф82mm | Ф82mm |
Bar diameter | Ф70mm | Ф70mm |
Spindle speed | 2000rpm | 2000rpm |
Hydraulic chuck | 10” | 10” |

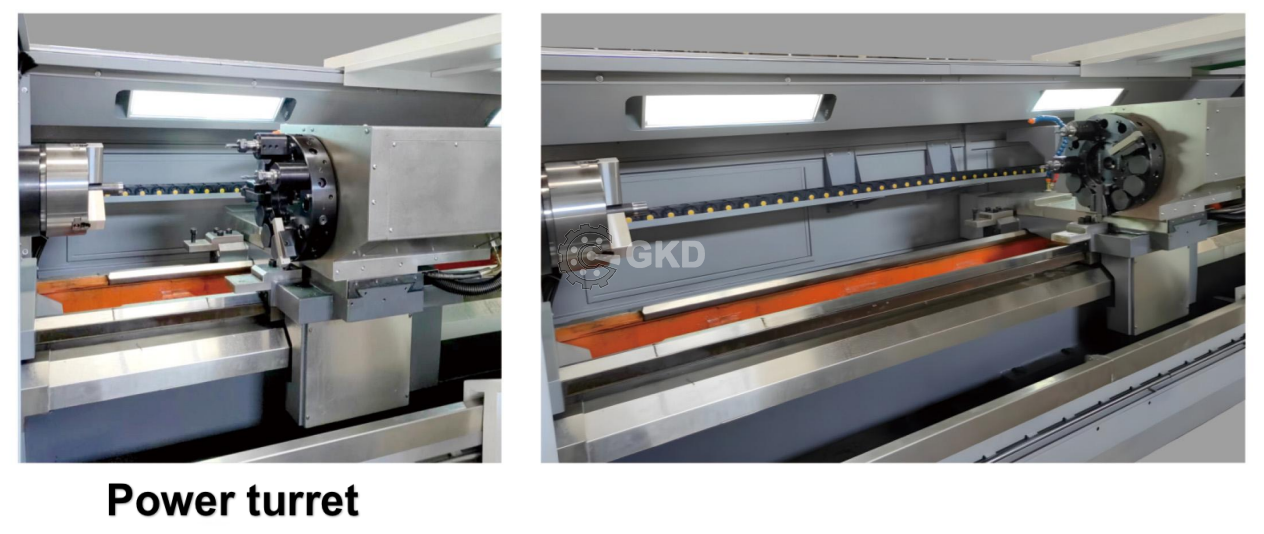

Turrtet stations | 12pcs | 12pcs |
Milling axis speed | 4000rpm | 4000rpm |
Main spindle power | 15KW | 15KW |
Milling axis power | 3.1KW | 3.1KW |
X axis power | 3.1KW(with brake) | 3.1KW(with brake) |
Z axis power | 3.1KW | 3.1KW |
Cooling pump motor power | 0.37KW | 0.37KW |
Rapid speed X/Z | 12m/min | 25m/min |
X axis travel | 640mm | 640mm |
Z axis travel | 2500mm | 3000mm |
Tailstock shaft diameter | 75mm | 75mm |
Tailstock travel | 2000mm | 2500mm |
Top heartrip | 150mm | 150mm |
Repeat positioning accuracy of spindle indexing | ±0.005° | ±0.005° |
Positioning accuracy of spindle indexing | ±0.002° | ±0.002° |
Repeat positioning accuracy X/Z | 0.002mm | 0.002mm |
Positioning accuracy X/Z | 0.003mm | 0.003mm |
Oil tank capacity | 60L | 60L |
Cooling tank capacity | 108L | 108L |
Machine weight | 5200KG | 5800KG |
Machine size | 5100*1900*2200mm | 5800*1900*2200mm |
