Model | LM-8SY |
Double spindle/single power turret | |
Number of axis | 7 Axis(X+Z+Z1+C1+C2+Y+TD) |
Max turning diameter on the bed | Ф600mm |
Max processing length | 500mm |
Max processing diameter | Ф500mm |
Main spindle nose | A2-6 |
Main spindle hole | Ф66mm |
Bar hole diameter | Ф52mm |
Main spindle speed | 0-4500rpm |
Main spindle Chuck size | 8”(Hydraulic chuck) |
Sub-spindle nose | A2-5 |
Sub-spindle hole | Ф56mm |
Bar hole diameter | Ф46 |
Sub-spindle speed | 0-6000rpm |
Sub-spindle chuck size | 6”(Hydraulic chuck) |
Main Spindle power | 11KW |
Sub-spindle power | 7.5KW |
X1 axis power | 3.1KW |
Y1 axis power | 3.1KW |
Z1/Z2 axis power | 3.1KW |
TD axis power | 3.1KW |
Hydraulic pump motor power | 3.1KW |
Cooling pump motor power | 1.5KW |
Tool turret position | 12pcs |
Turret model | BMT55 |
Outer diameter shank | 25mm |
Inside diameter shank（Boring tool)） | Ф32mm |
Living tools milling speed | 0-4000rpm |
X1/Y1/Z1/Z2 axis rapid speed | 25m/min |
X1 axis travel | 600mm |
Y1 axis travel | 140mm（±70mm） |
Z1/Z2 axis travel | 500mm |
Spindle indexing repeat positioning accuracy | ±0.005° |
Spindle indexing positioning accuracy | ±0.002° |
X/Y/Z/Z1 axis position accuracy | 0.003mm |
Oil tank capacity | 72L |
Cooling tank capacity | 180L |
Machine weight | 5600KG |
Machine size | 4100*2300*2300mm |
Controller | Syntec 22TB |

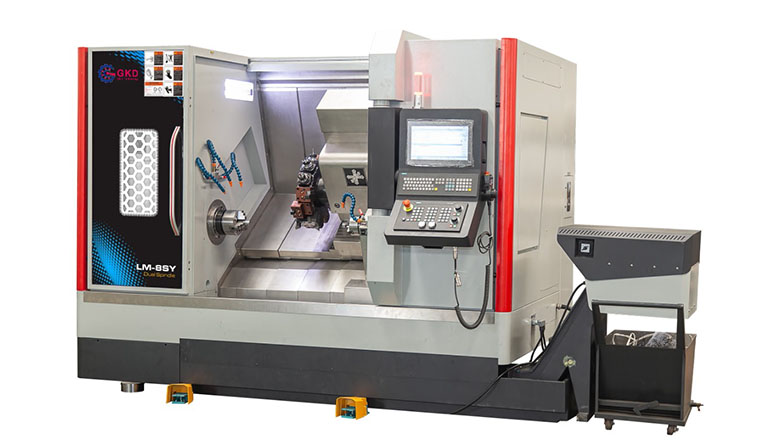

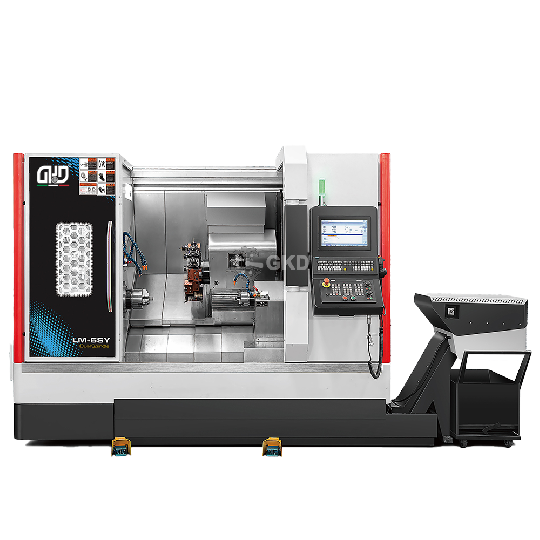

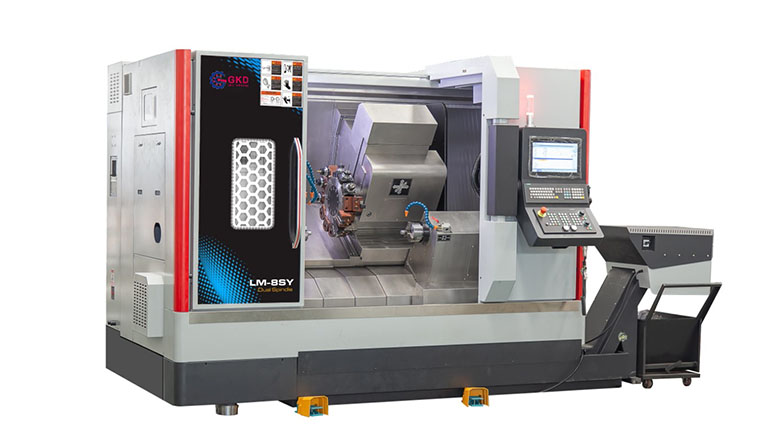

LM8SY Double-spindles CNC Turret Lathe Machine With Y Axis
