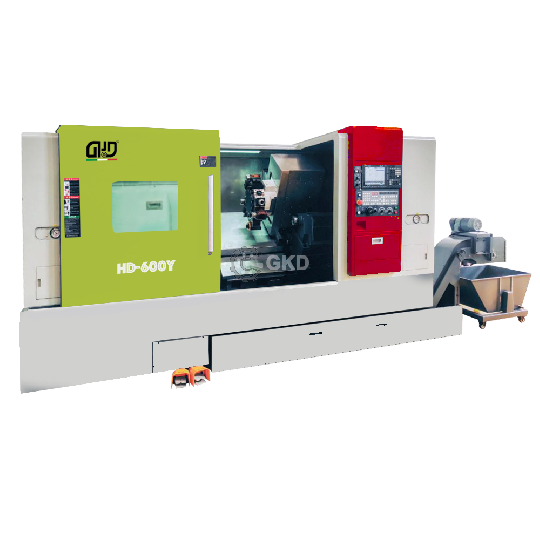

Model | HD-600Y/1500 |
Max turning diameter on the bed | Ф920mm |
Max processing length | 1500mm |
Max processing diameter | Ф600mm |
Main spindle nose | A2-8(10”) |
Main spindle hole | Ф86mm |
Bar hole diameter | Ф75mm |
Main spindle speed | 2800rpm |
Main Spindle power | 18.5KW |
Driven head power | 2.7Kw |
X/Z torque | 30 Nm |
Tool turret position | 12pcs |
Turret model | BMT65 |
Tool size | 32x32mm |
Boring tool size | 50mm |
Driven head size | ER32mm |
Living tools milling speed | 4000rpm |
Axis rapid speed | 12m/min |
X axis travel | 325mm |
Y axis travel | ±60mm |
Z axis travel | 1500mm |
Tailstock travel | 1500mm |
Tailstock sleeve diameter | 100mm |
Tailstock sleeve travel | 80mm |
Tailstock type | MT#5 |
Processing accuracy | IT6 |
Repeatability position accuracy | X ： ≤0.003 、Z1/Z2： ≤0.005 |
Position accuracy | X ： ≤0.008 、Z1/Z2： ≤0.01 |
Machine weight | 10500KG |
Machine size | 6100*2200*2200mm |
Controller | Fanuc Oi-TF |
Model | HD-600Y/1500 |
Max turning diameter on the bed | Ф920mm |
Max processing length | 1500mm |
Max processing diameter | Ф600mm |
Main spindle nose | A2-8(10”) |
Main spindle hole | Ф86mm |
Bar hole diameter | Ф75mm |
Main spindle speed | 2800rpm |
Main Spindle power | 18.5KW |
Driven head power | 2.7Kw |
X/Z torque | 30 Nm |
Tool turret position | 12pcs |
Turret model | BMT65 |
Tool size | 32x32mm |
Boring tool size | 50mm |
Driven head size | ER32mm |
Living tools milling speed | 4000rpm |
Axis rapid speed | 12m/min |
X axis travel | 325mm |
Y axis travel | ±60mm |
Z axis travel | 1500mm |
Tailstock travel | 1500mm |
Tailstock sleeve diameter | 100mm |
Tailstock sleeve travel | 80mm |
Tailstock type | MT#5 |
Processing accuracy | IT6 |
Repeatability position accuracy | X ： ≤0.003 、Z1/Z2： ≤0.005 |
Position accuracy | X ： ≤0.008 、Z1/Z2： ≤0.01 |
Machine weight | 10500KG |
Machine size | 6100*2200*2200mm |
Controller | Fanuc Oi-TF |
